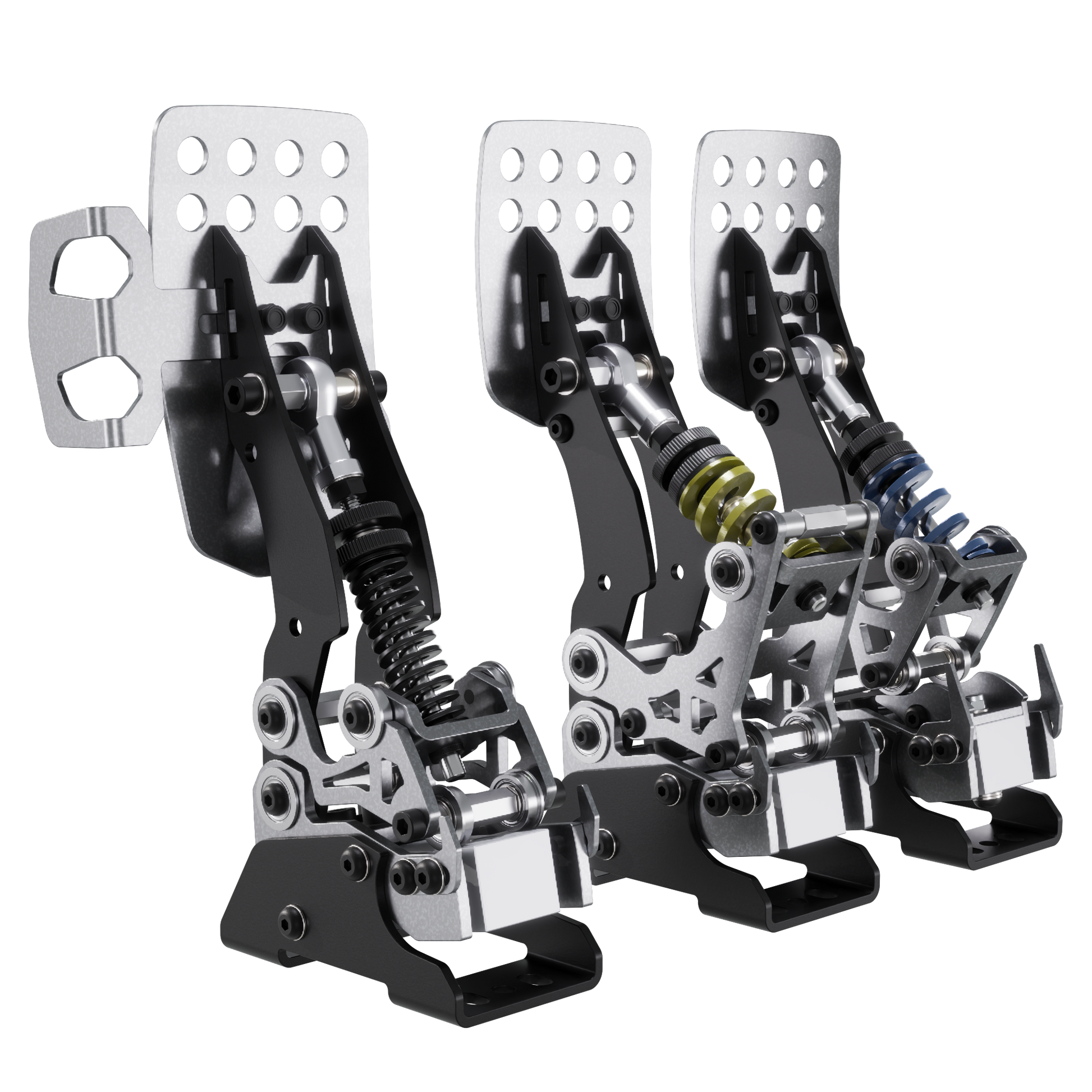

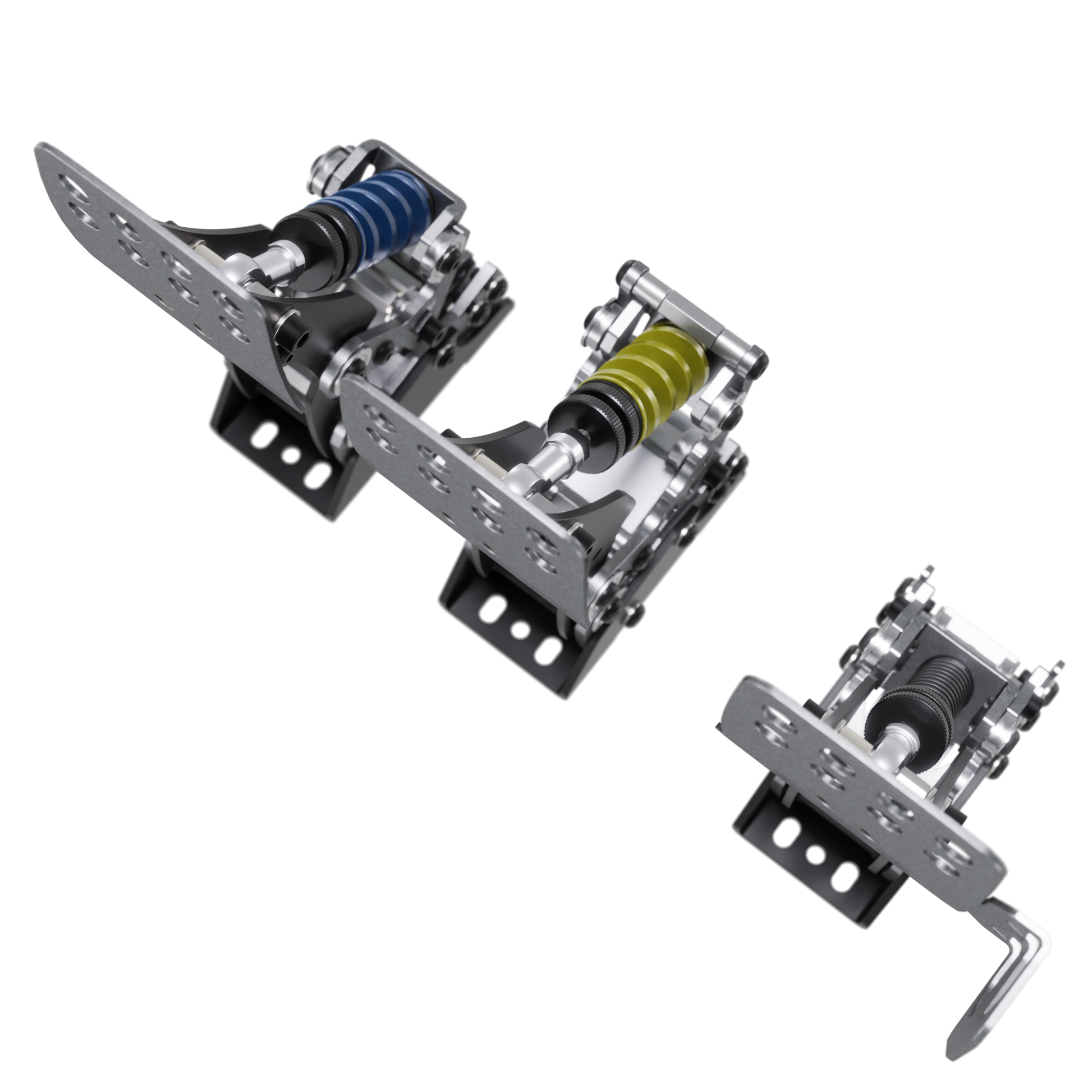

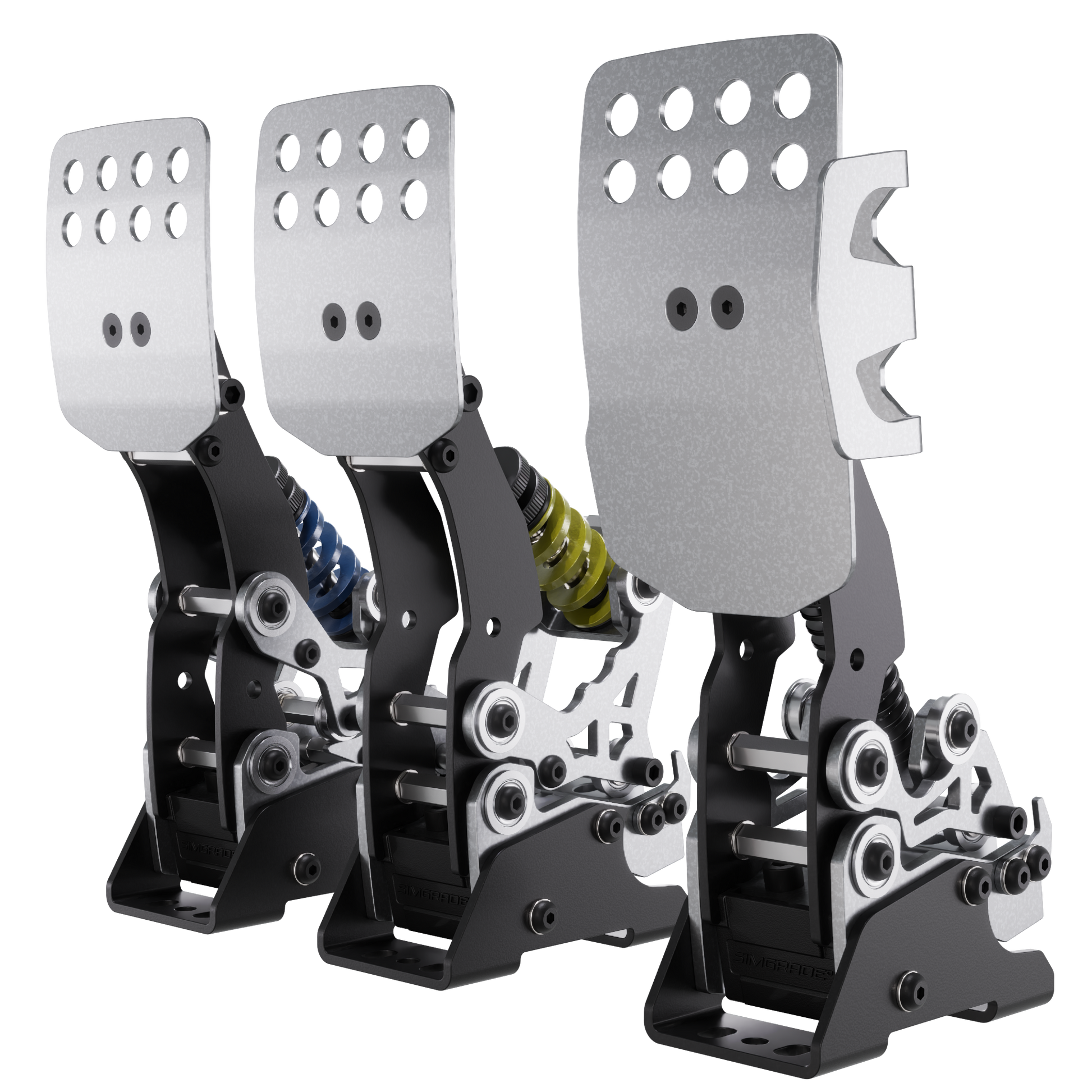

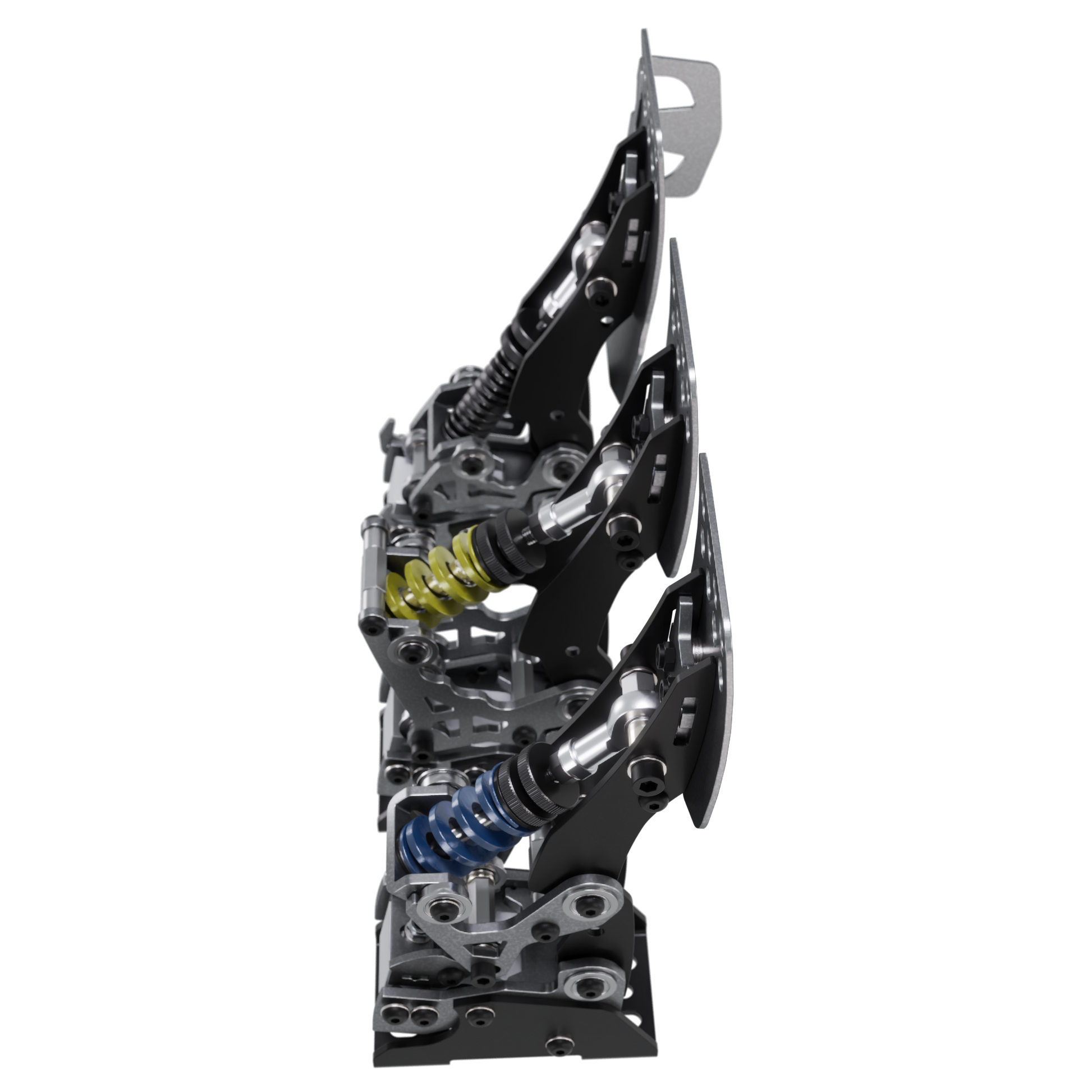

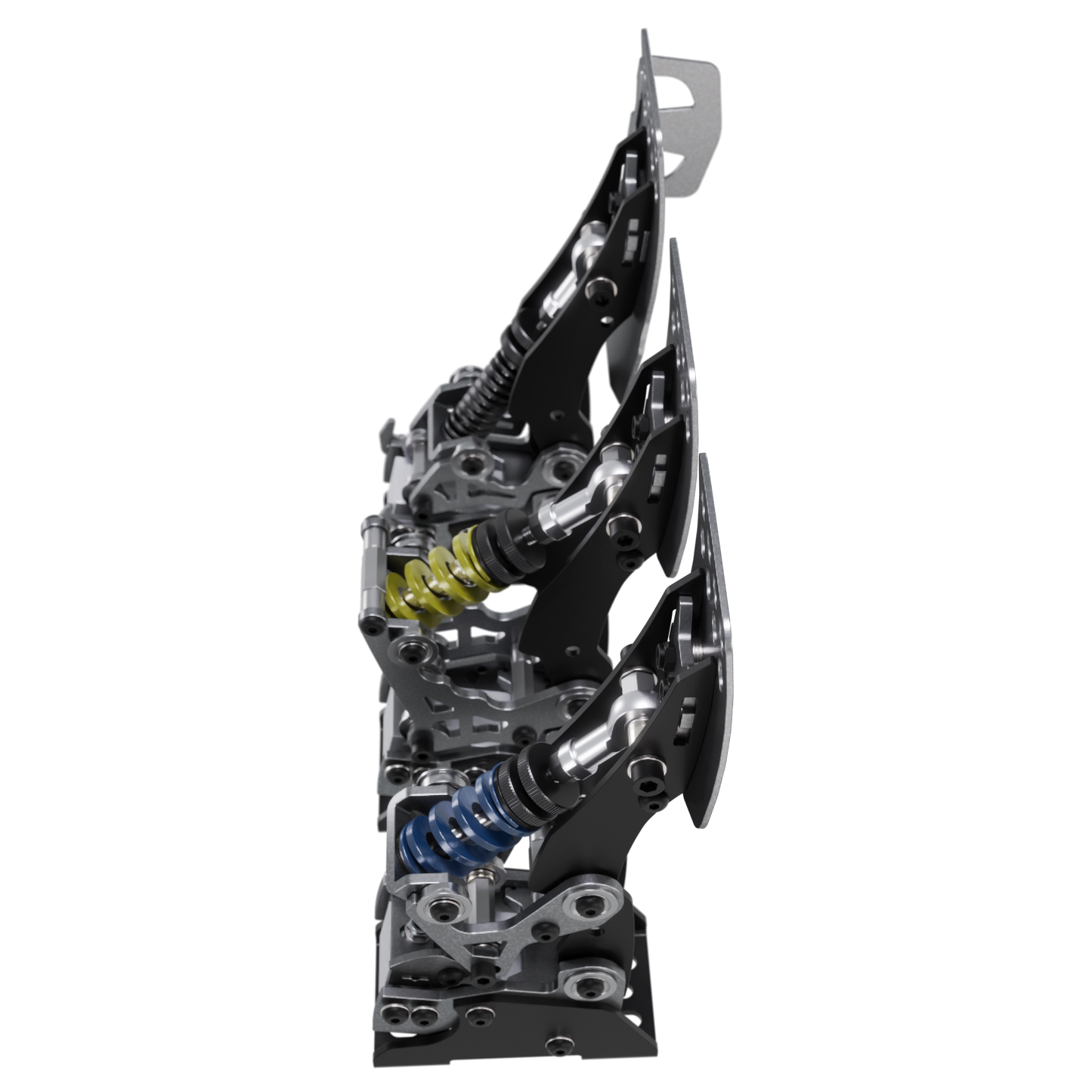

SIMGRADE° VX-PRO Pedals

Pedals with a price-performance ratio you’ve never seen. VX-PRO pedals are the end result of three years of development and include certain features from our R7 and Thera models.

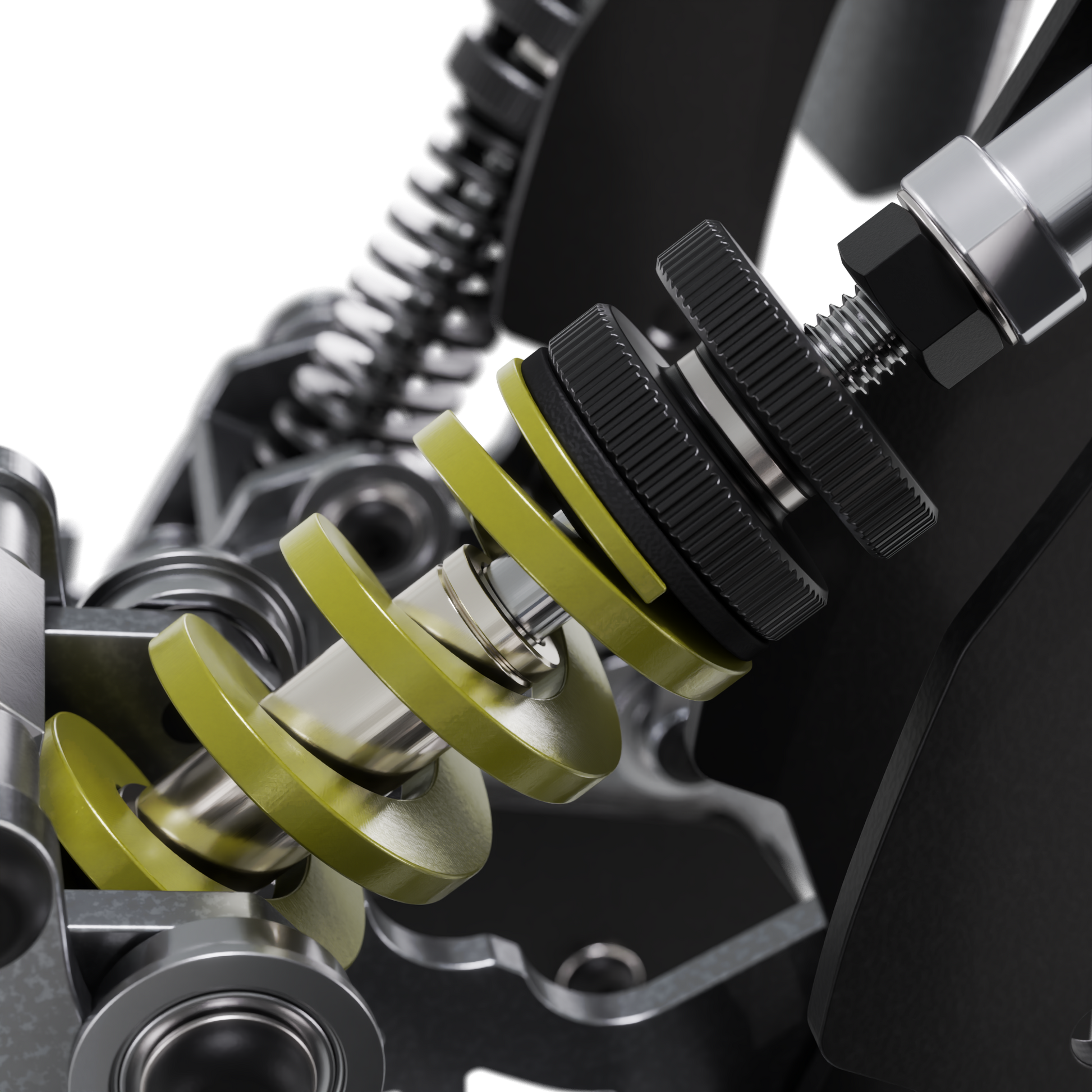

Extremely wide and easy adjustments for the brake resistance combined with freely and independently adjustable “dual stage” functionality guarantees a braking feel that is perfectly tailored for you – the end result is full confidence even in the most challenging braking zones.

The high fidelity response of the throttle provides perfect control on the corner exits, and if you want to maximize control accuracy, check out our tilting heel support. We highly recommend the side support as well.
Mounting pattern: here

The unforeseen mechanical structure of the clutch pedal allows creating response profiles completely freely – end result being the best clutch we’ve ever used. Resistance can be adjusted in a matter of seconds from road car feel to race car feel.

Dan Suzuki’s First Impression review

GENERAL FEATURES

• Ultimate price to performance ratio
• Load cells used with all pedals (brake: 200kg)
• Large & smooth pedal faces for great comfort

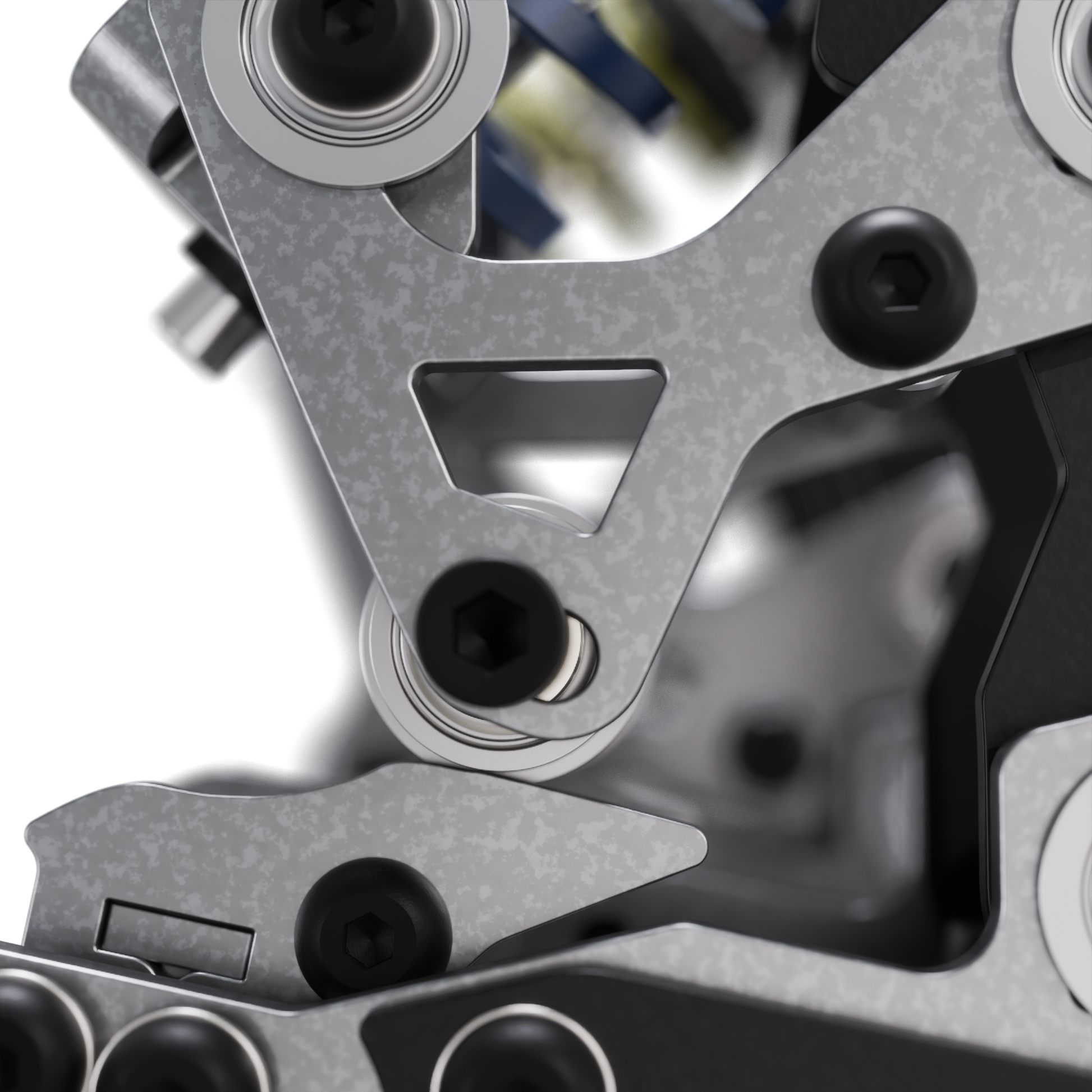

• Stainless steel ball bearings in all pivot points
• Adjustable pedal-to-pedal distance, narrow base design
• Maintenance free design (load cells, sealed bearings): dust has no effect on the performance
• Super rigid structure, zero play in any direction
• Height adjustable pedal faces
• Easy and fast adjustment for pedal progressivity in all pedals
• Pedal angle adjustable 8.5 degrees
• Calibration software with
  • Adjustable dead zones
  • Non-linear response curves
  • Save to file & load profile from file feature

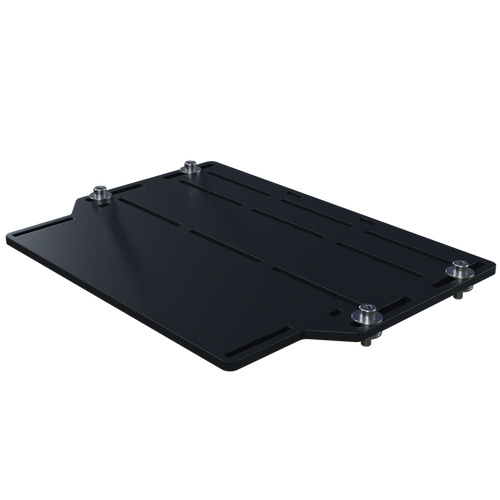

• Compatible with Pedal Base Plate and Heel Stopper
• Mounting pattern: click to see pic here
• Compatible with ISO 10243 Die Springs

• Compatible with consoles via Drive Hub! Extra info for PS5: here
• Designed, manufactured and assembled 100% in Finland
• Warranty: two years

THROTTLE

• Ultra smooth and precise feel
• No metal-to-metal contact
• Travel adjustable
• Side support for foot (optional, compatible with brake & clutch as well)
• Integrated Dual Action heel support available (optional, compatible with brake & clutch as well)
• Three different mechanical settings for progressivity

BRAKE

• 200kg load cell, 90kg max braking force from foot
• Adjustable 2-stage braking feel
• Four different mechanical settings for progressivity

CLUTCH

• Adjustable feel (two different profile plates included)
• Two different mechanical settings for progressivity
